MB-140 GRAVITY Pneumatic Dry Mortar Conveying Compressor
Pneumatic conveying system for mortar and dry materials, supporting continuous operation at approximately 1.5 tonnes/hour.
Suitable for silo systems, mortar plants, and construction sites that need efficient material transfer to the point of use.

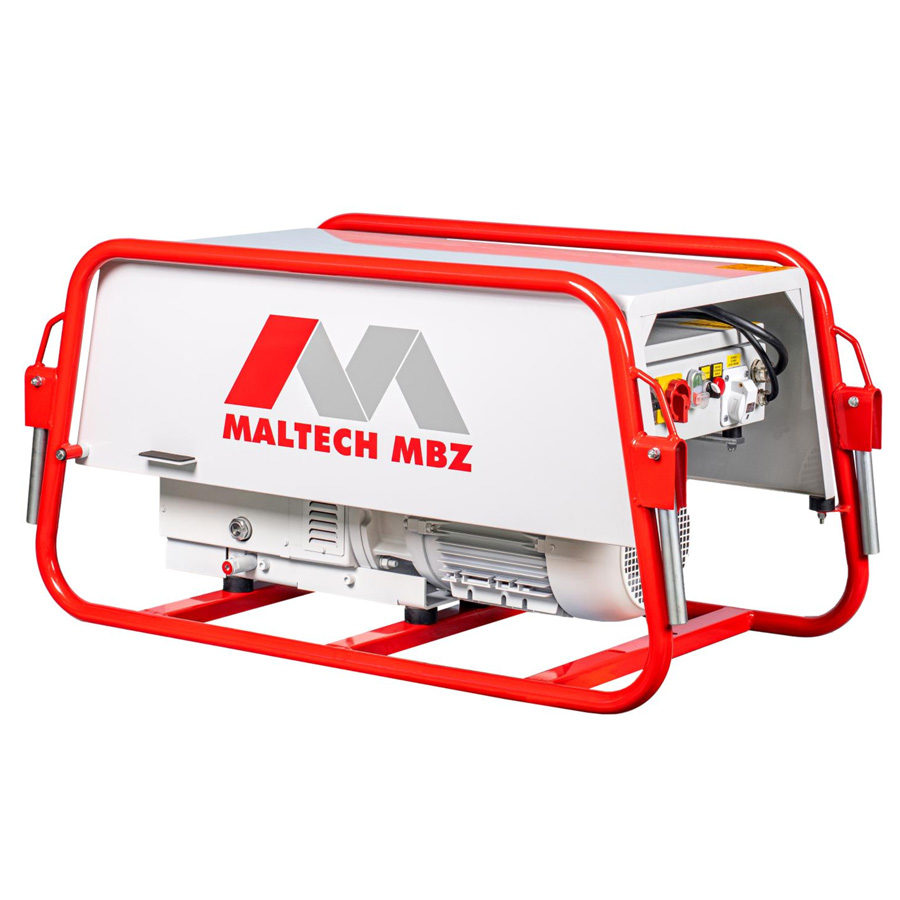

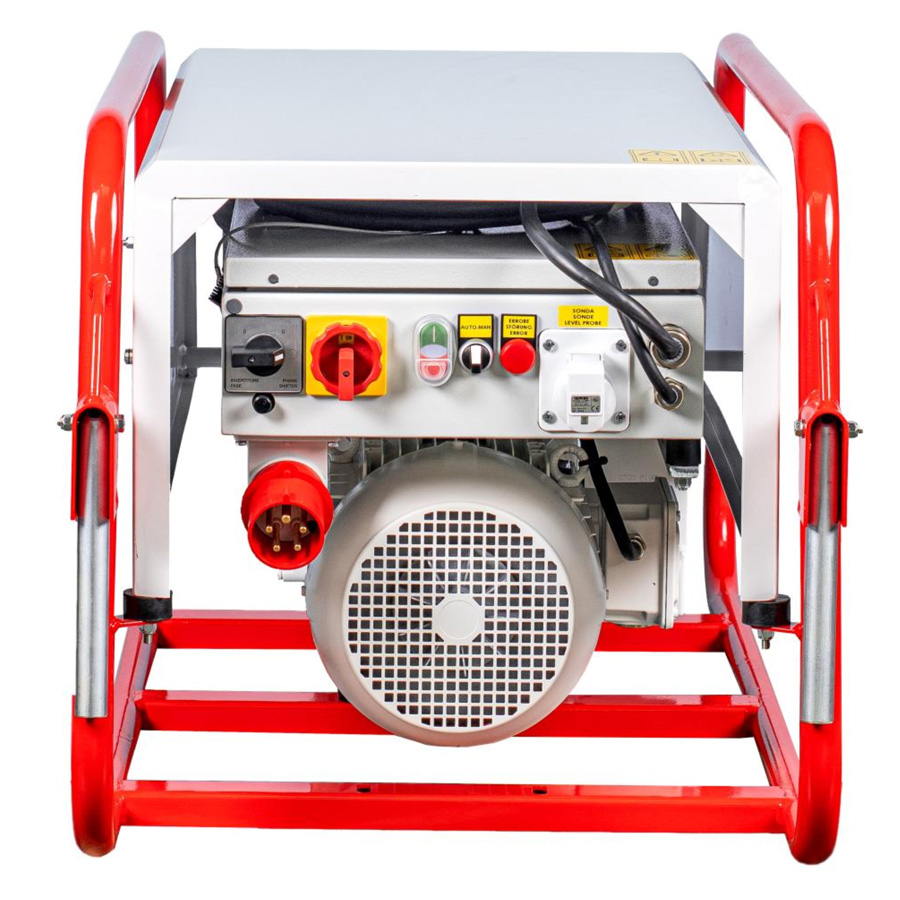

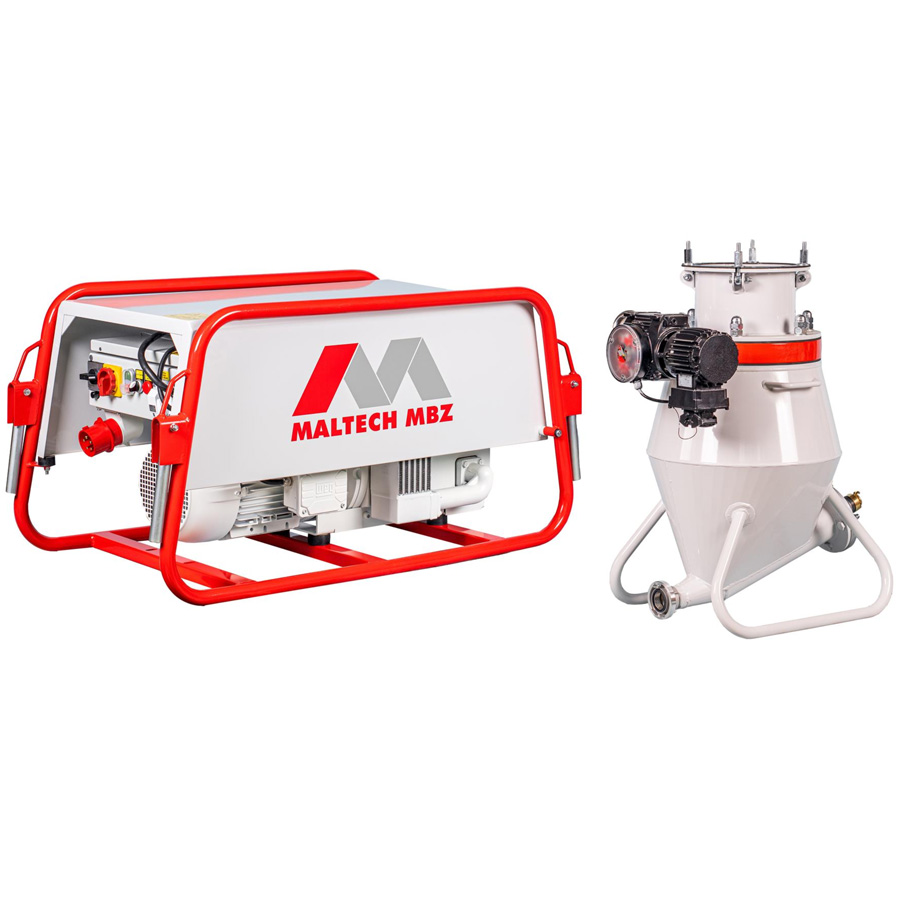

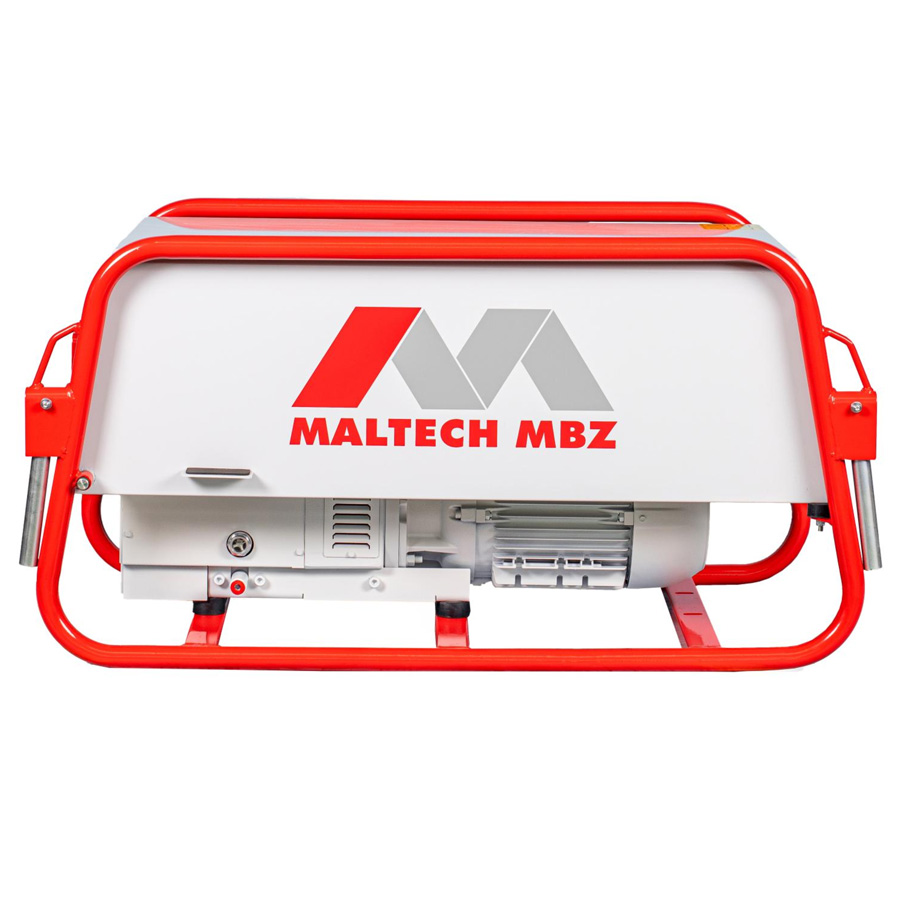

COMPRESSOR GRAVITY MB-140 is a MALTECH pneumatic dry-material conveying system designed to transfer mortar and dry materials from silos to mixers or points of use. It provides continuous material feeding and is suitable for construction sites and plants that use silo-based pre-mixed mortar systems.
Additional Information
Suitable Applications
Suitable for conveying dry mortar from silos, feeding material into mixers, mortar production plants, and construction sites using silo-based mortar storage and dispensing systems.

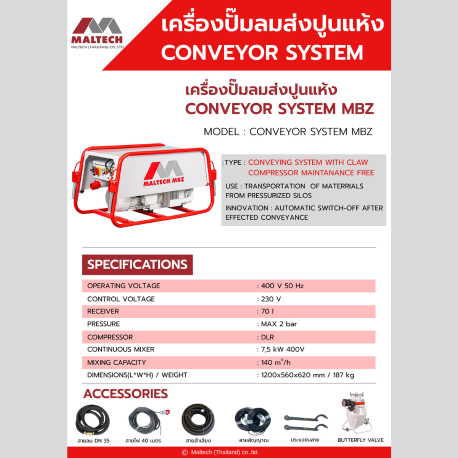

Power Requirements & Key Specifications
400V / 50Hz power supply, 7.5 kW / 400V compressor, compressor capacity of 140 m³, 70 L material receiver, maximum pressure of 2.5 bar, and a 50 m material conveying hose. Approximate machine dimensions are 1,200 × 560 × 620 mm, with a weight of approximately 187 kg.
Compatible Materials
Suitable for dry pre-mixed mortar, dry mortar, and dry powdered materials that can be conveyed pneumatically from a silo. Materials should be selected to match the conveying system and connected machinery.
MALTECH provides after-sales support with a warranty of up to 2 years. Inspection and maintenance are carried out by experienced technicians. For the exact warranty period, please check the applicable product and company terms before purchase.
